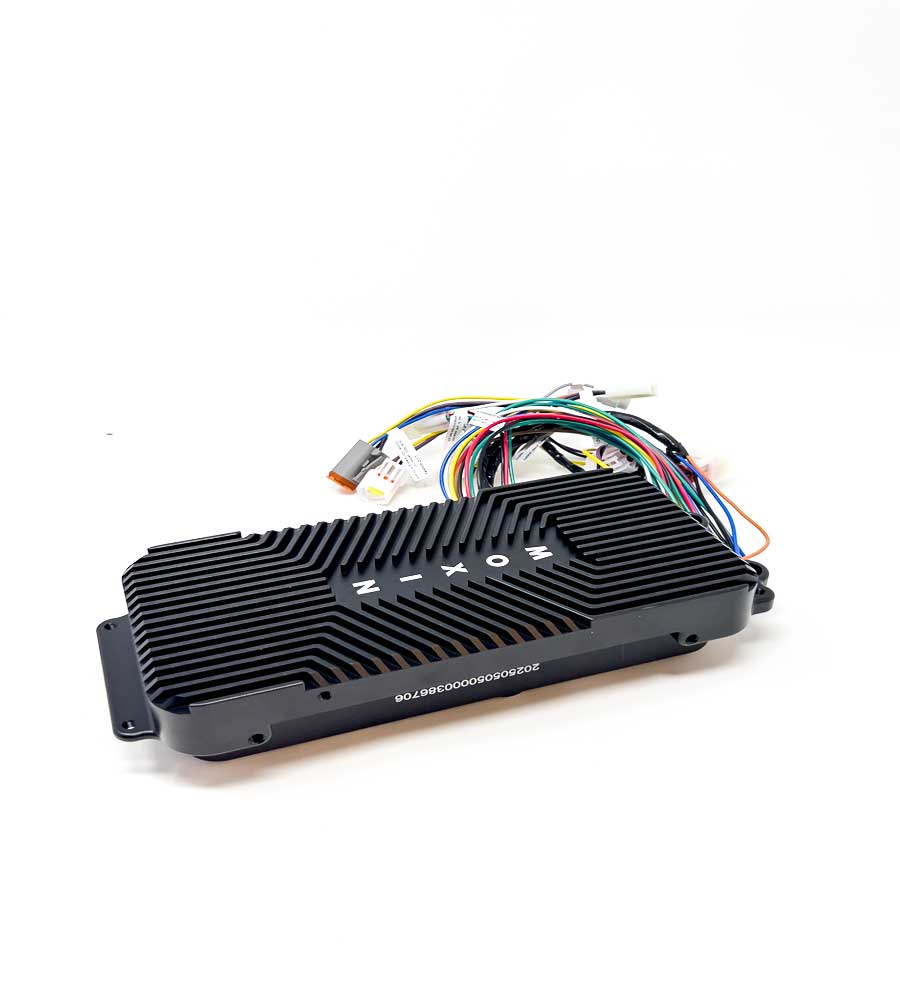

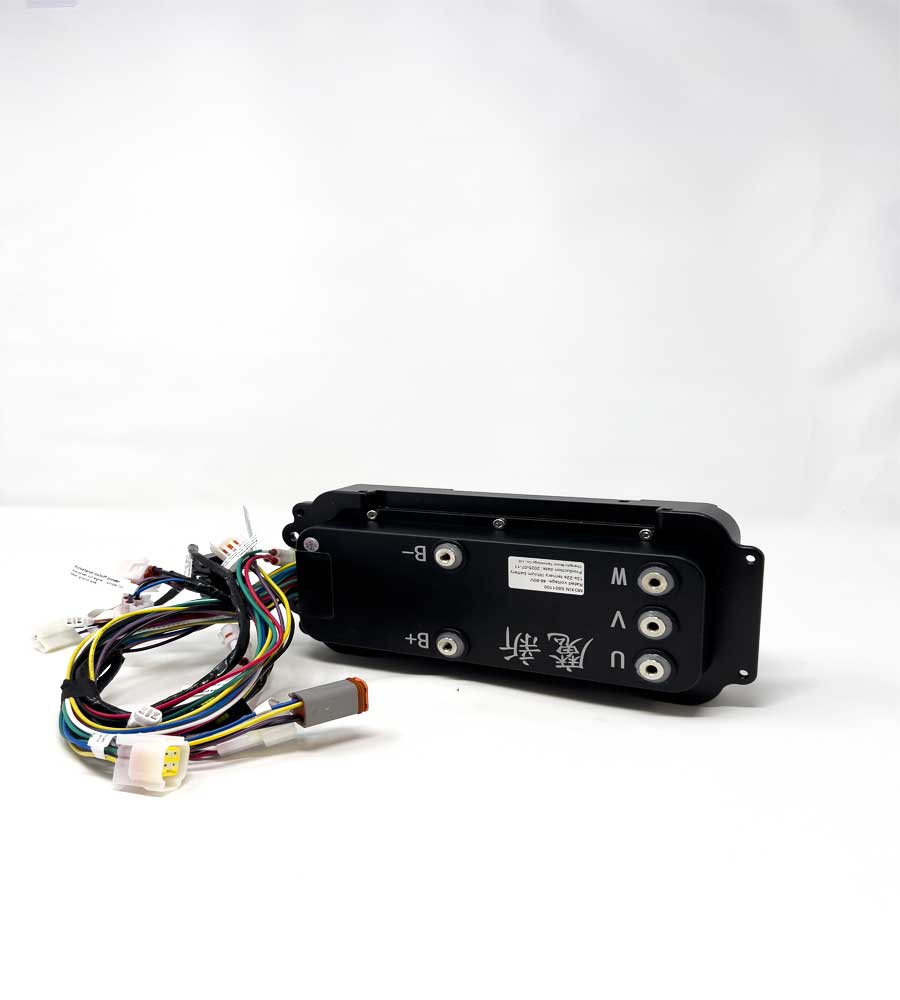

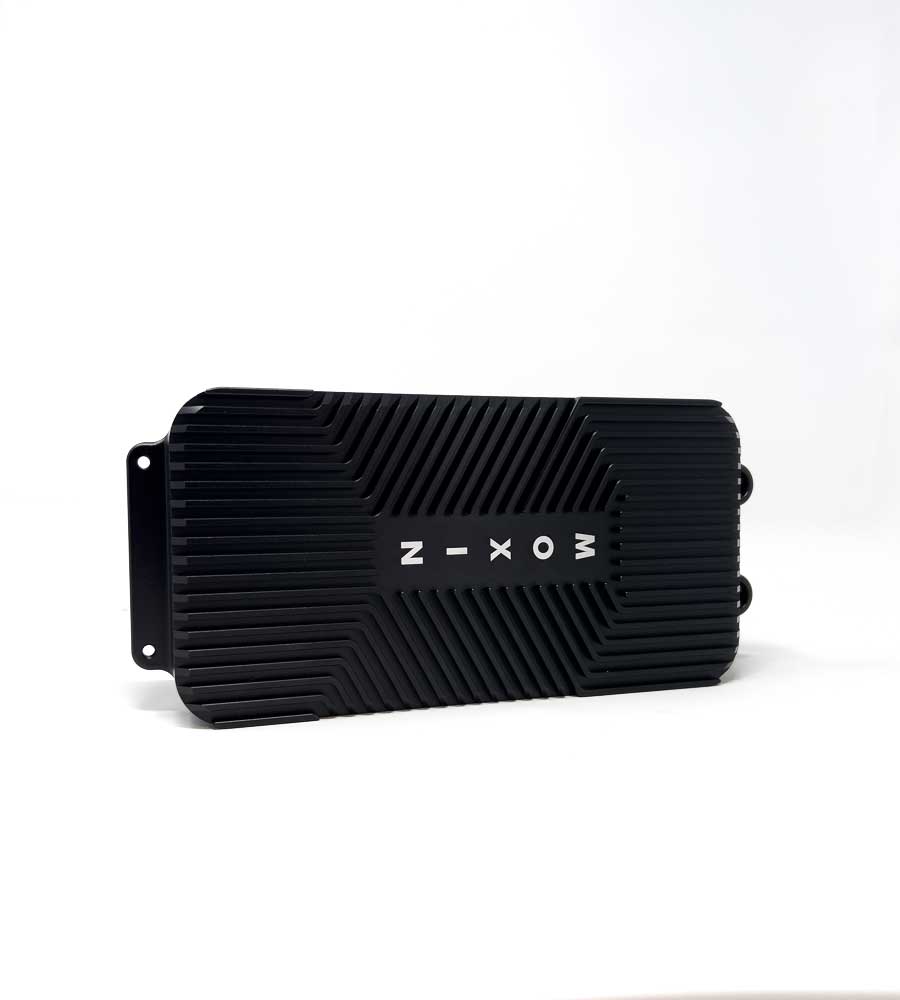

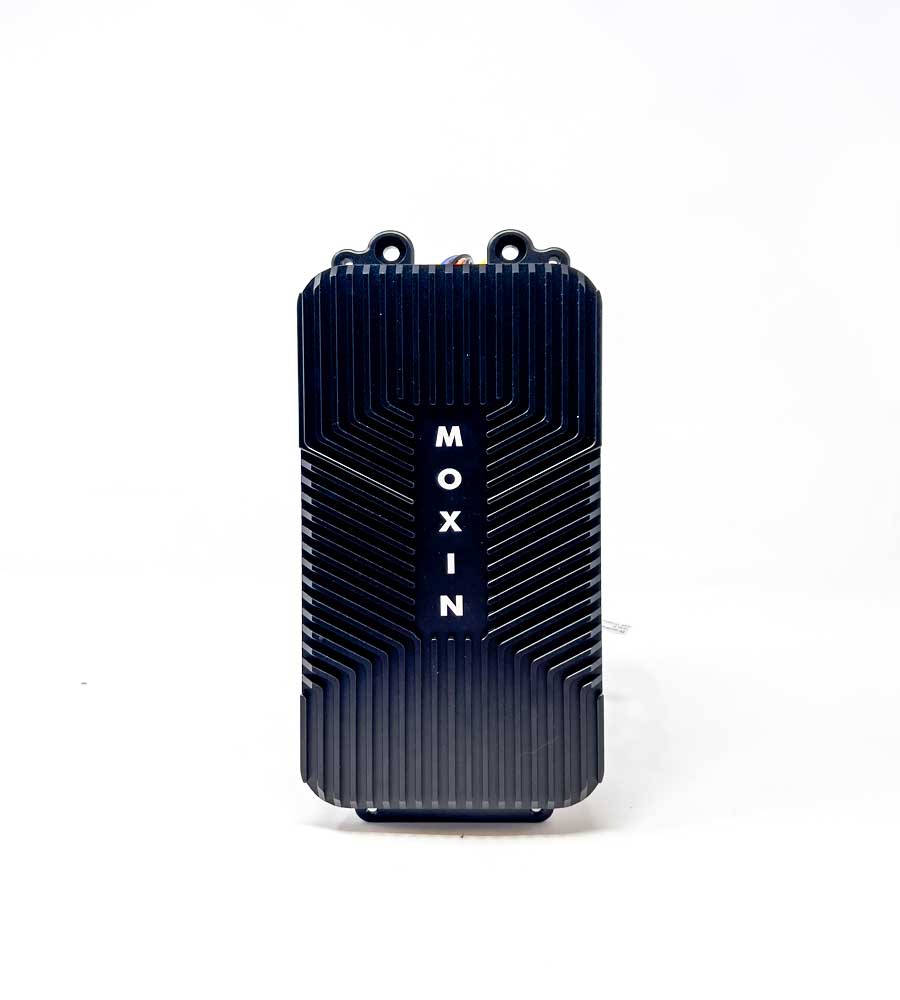

Moxin Wheelie-Assist 60 kW Controller

This is the all-new Moxin S801100controller. It features a built-in gyroscope and wheelie mode that lets you wheelie the bike without actually flipping it - an ideal solution for anyone learning to wheelie.

Performance example:
Instagram Reel

Compatibility

• Sur-Ron Light Bee
• Sur-Ron Ultra Bee
• Talaria MX4 / MX5
• Talaria X3
• 79 Bike Falcon
• E-RidePro SS

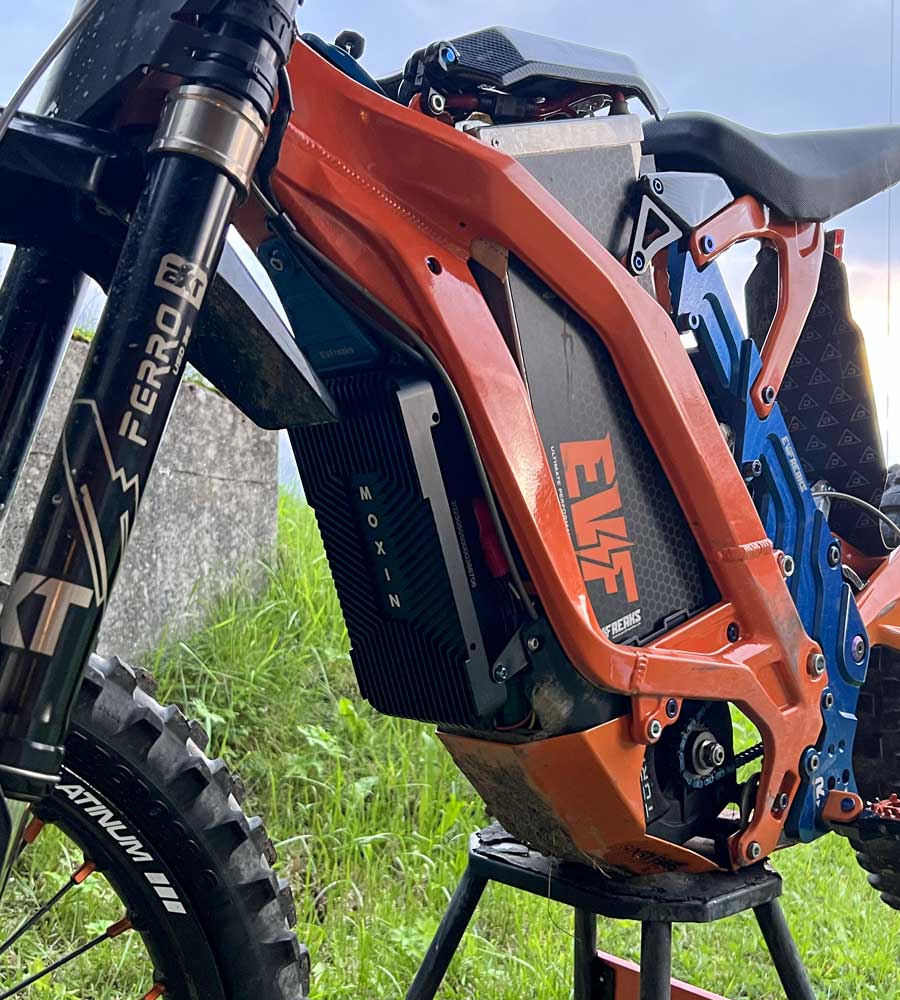

This is a full plug-and-play kit for the Sur-Ron Light Bee—our EVFreaks engineering team is finalizing mounting hardware and custom loom adapters for all supported bikes. If you can’t wait, go ahead and fabricate your own mounts.

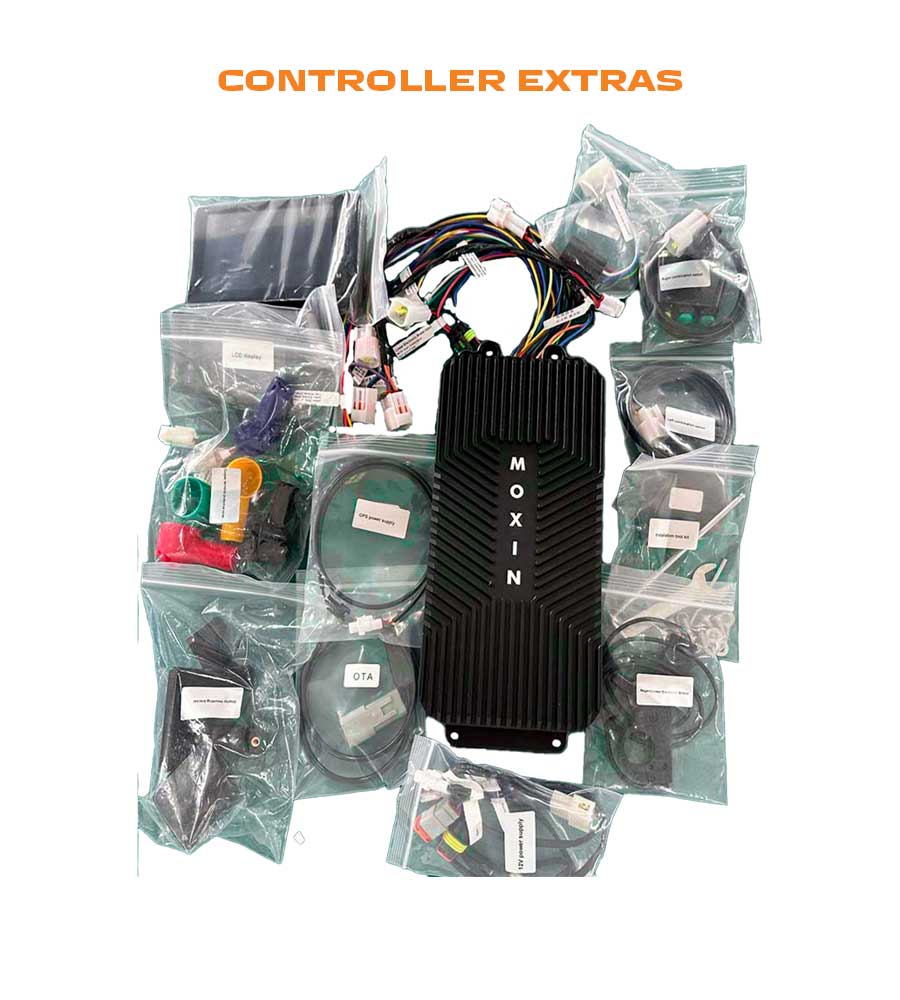

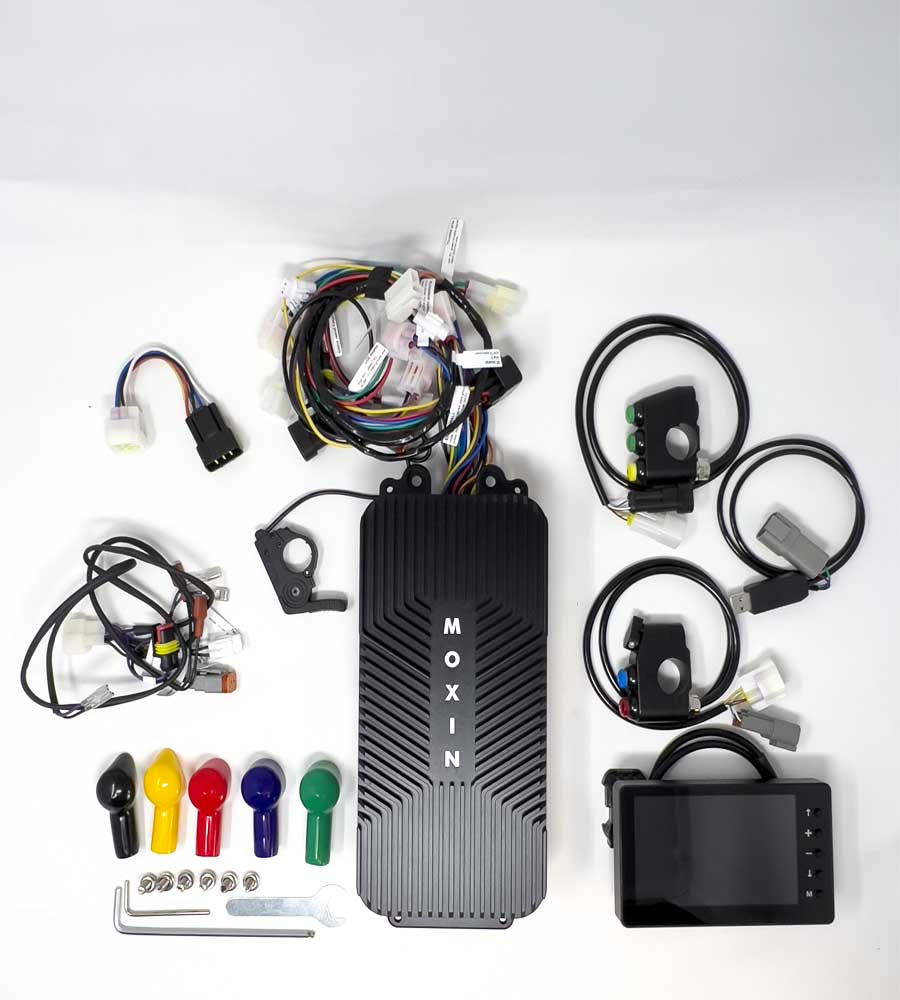

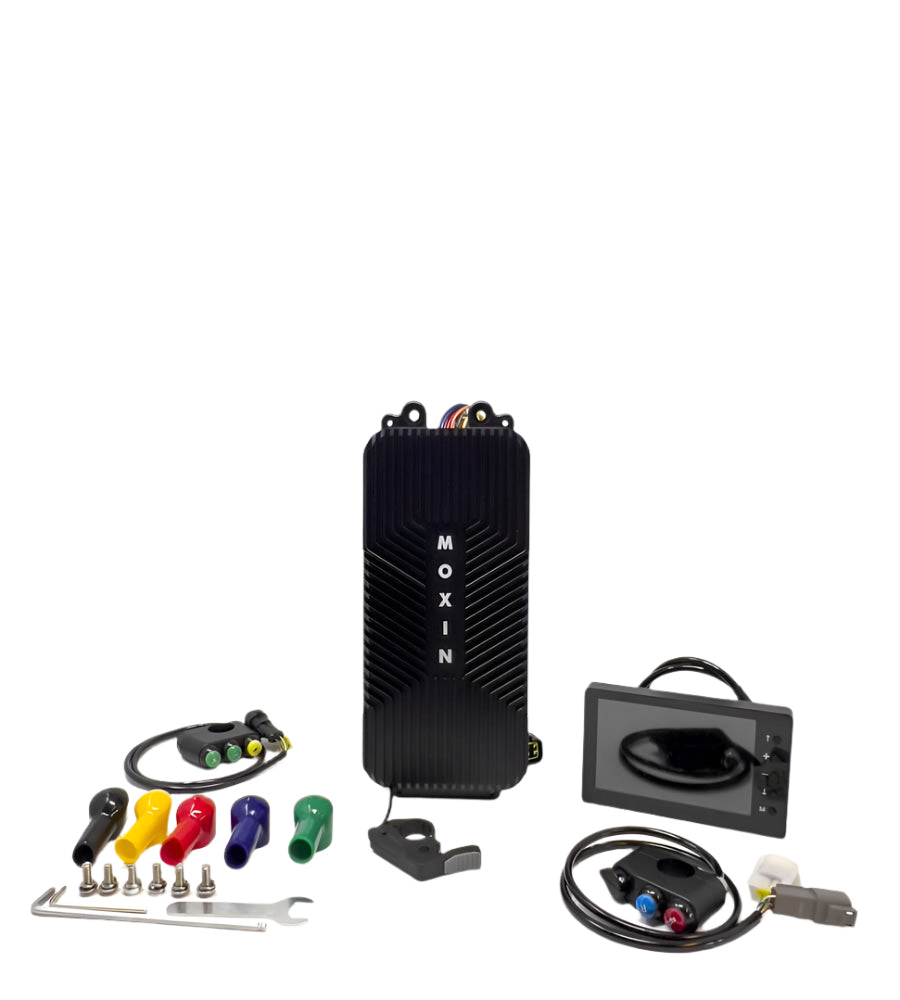

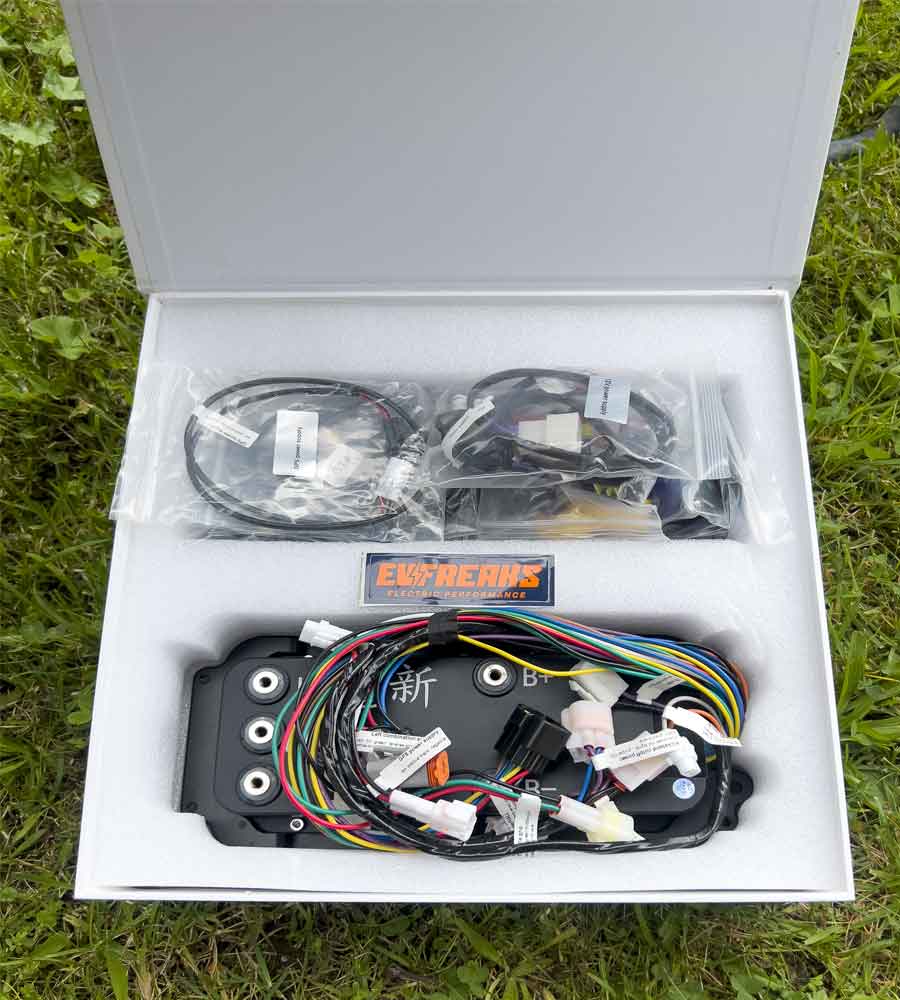

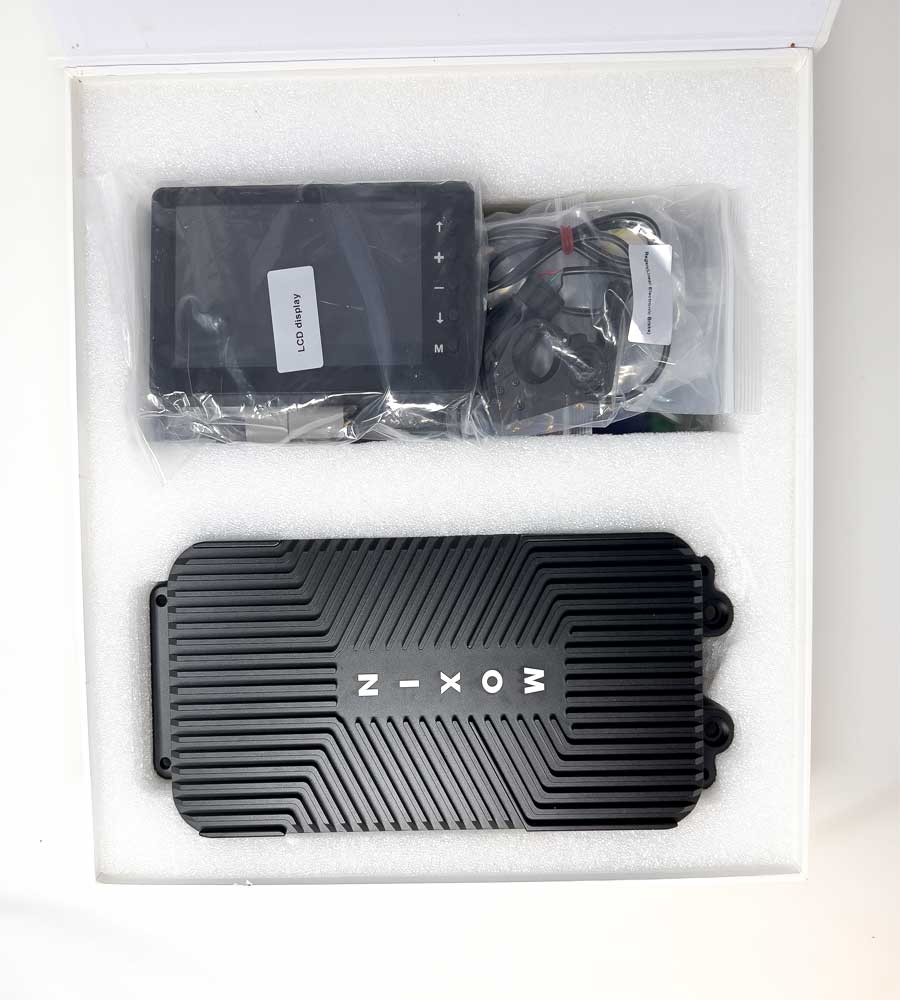

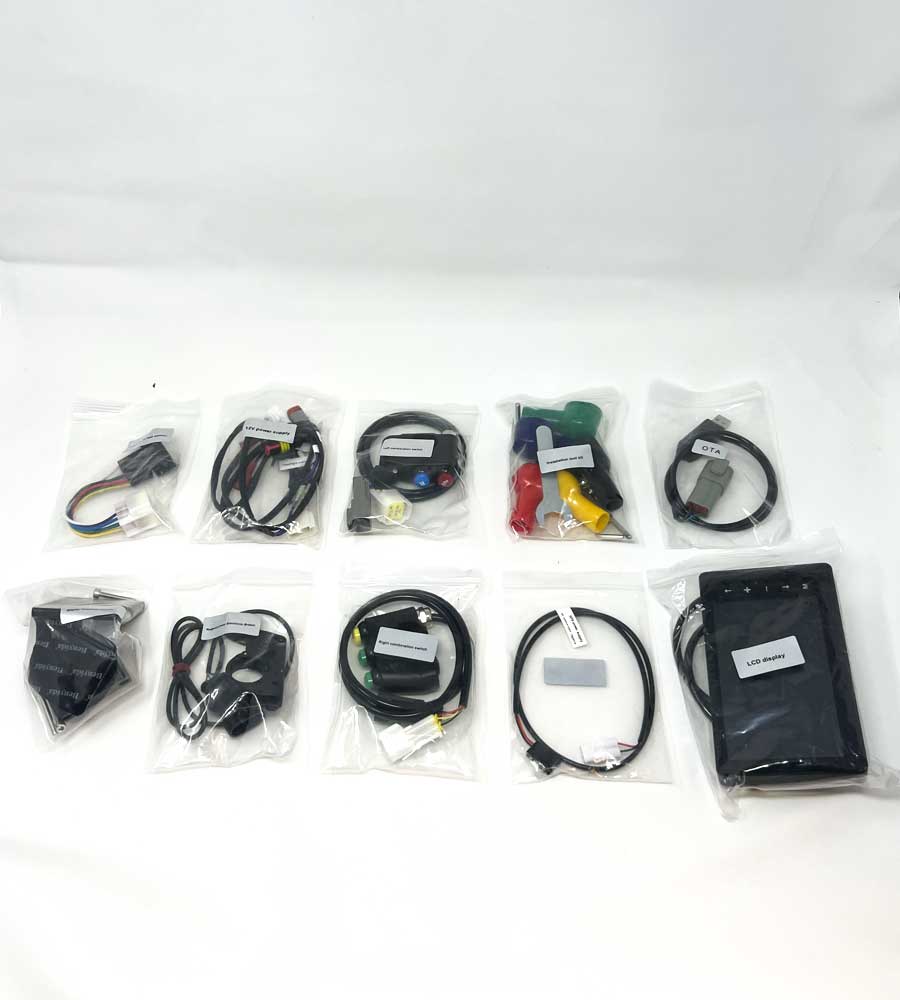

Package Contents

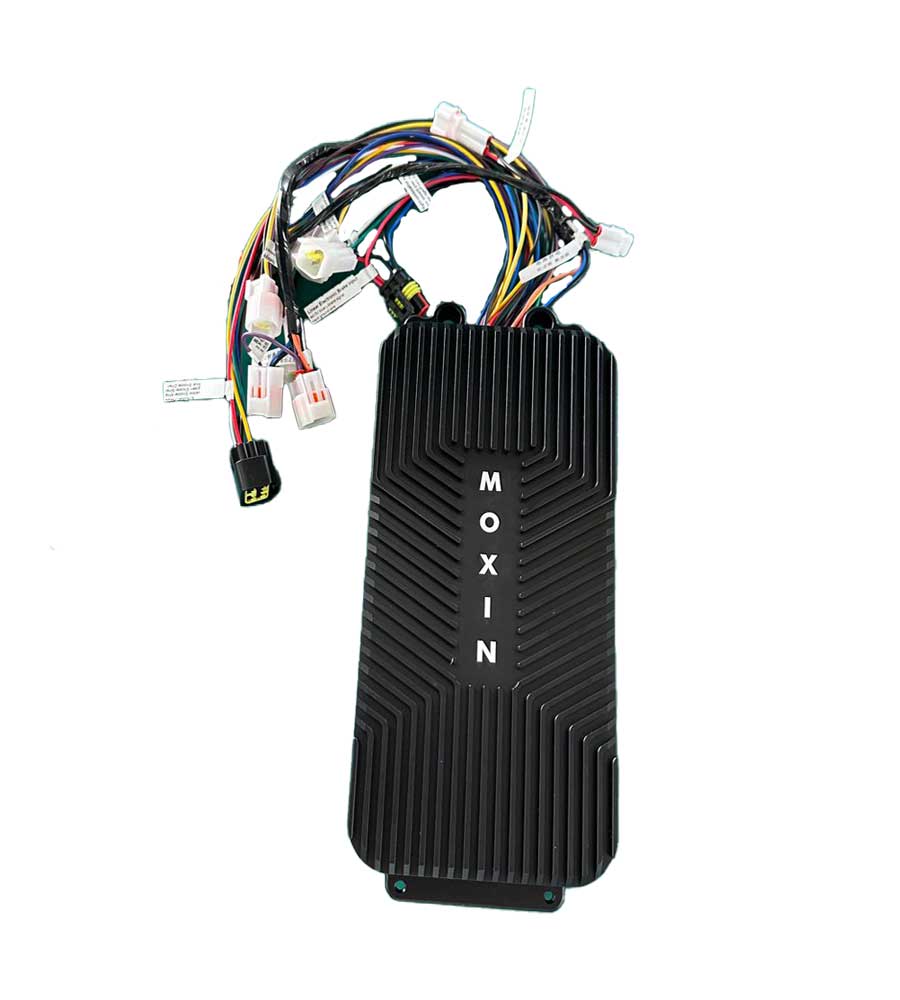

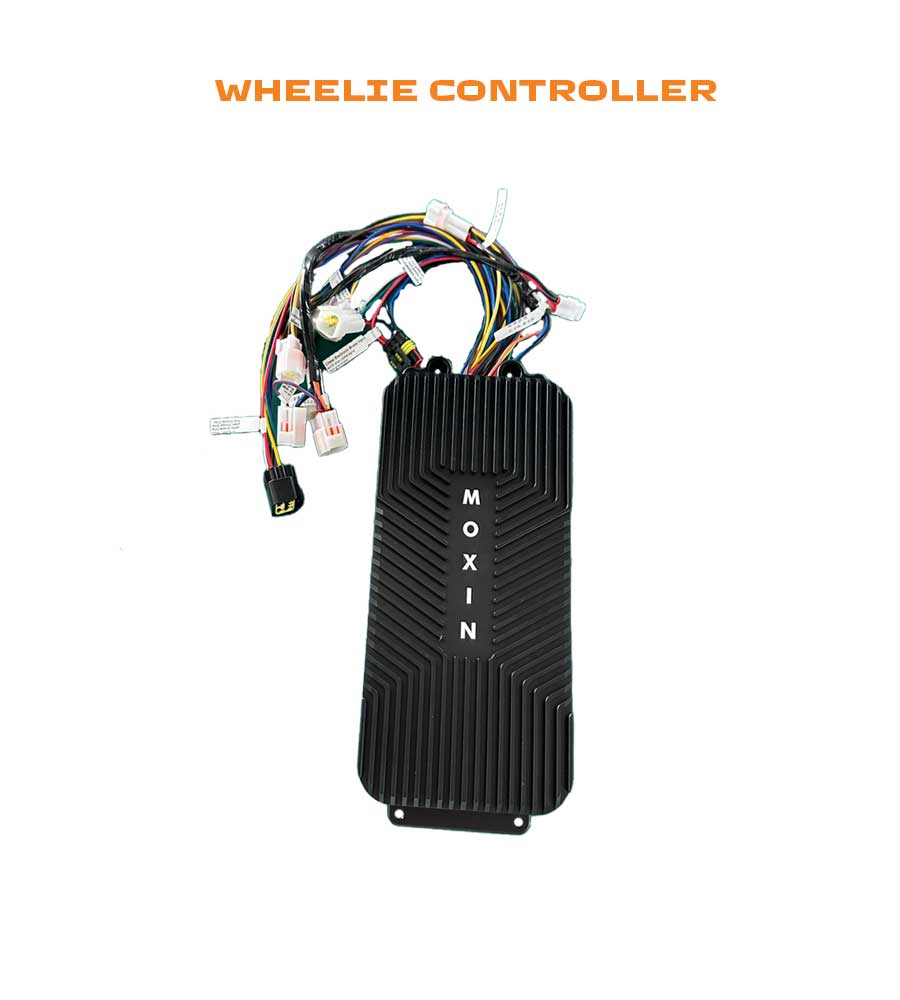

• Moxin Controller

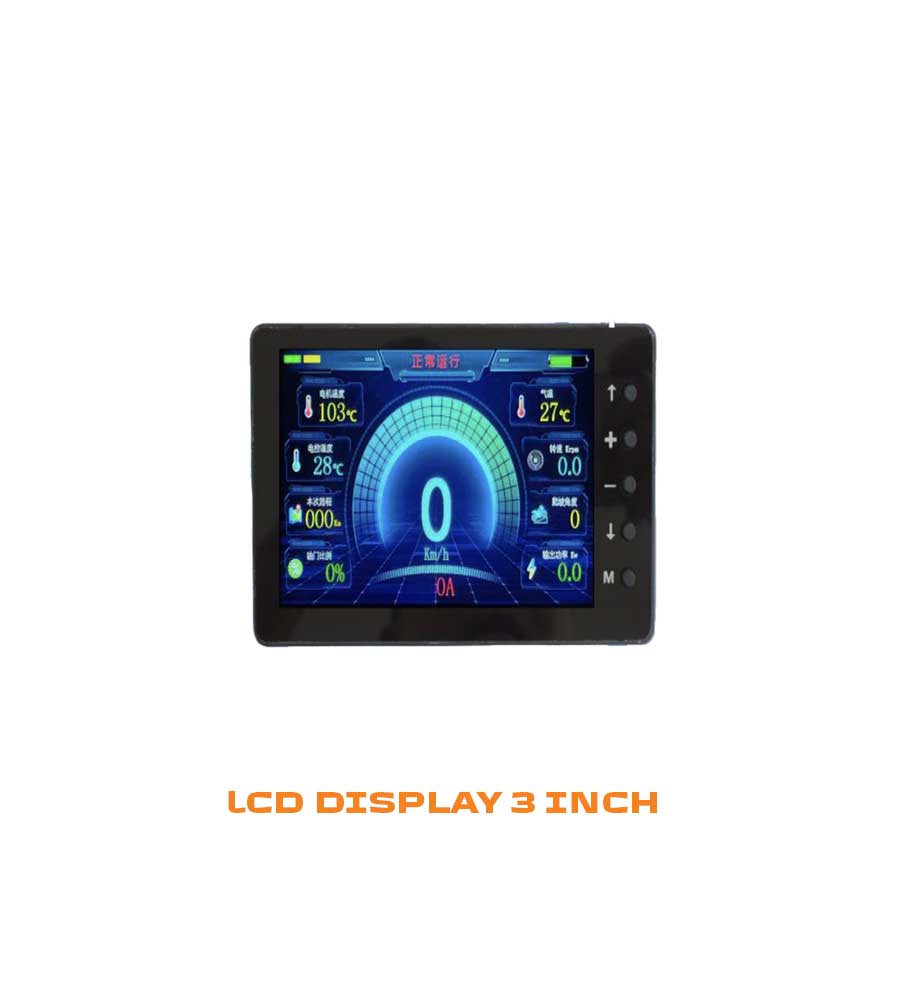

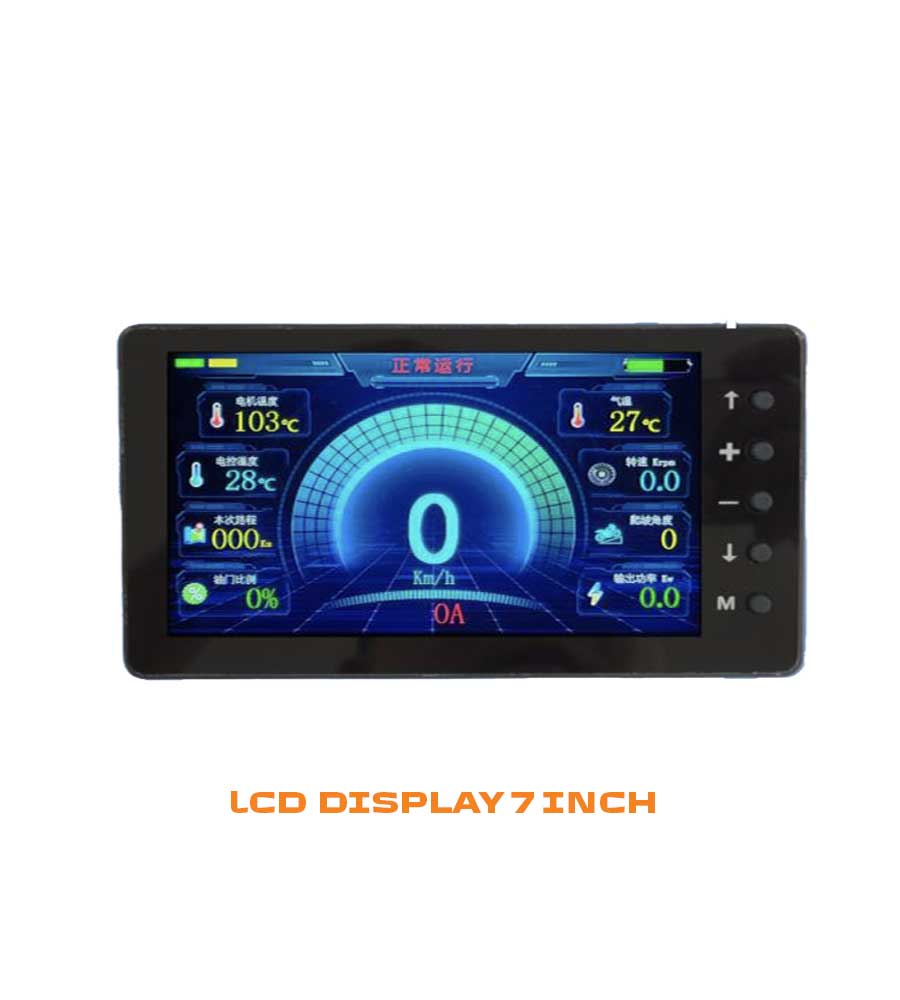

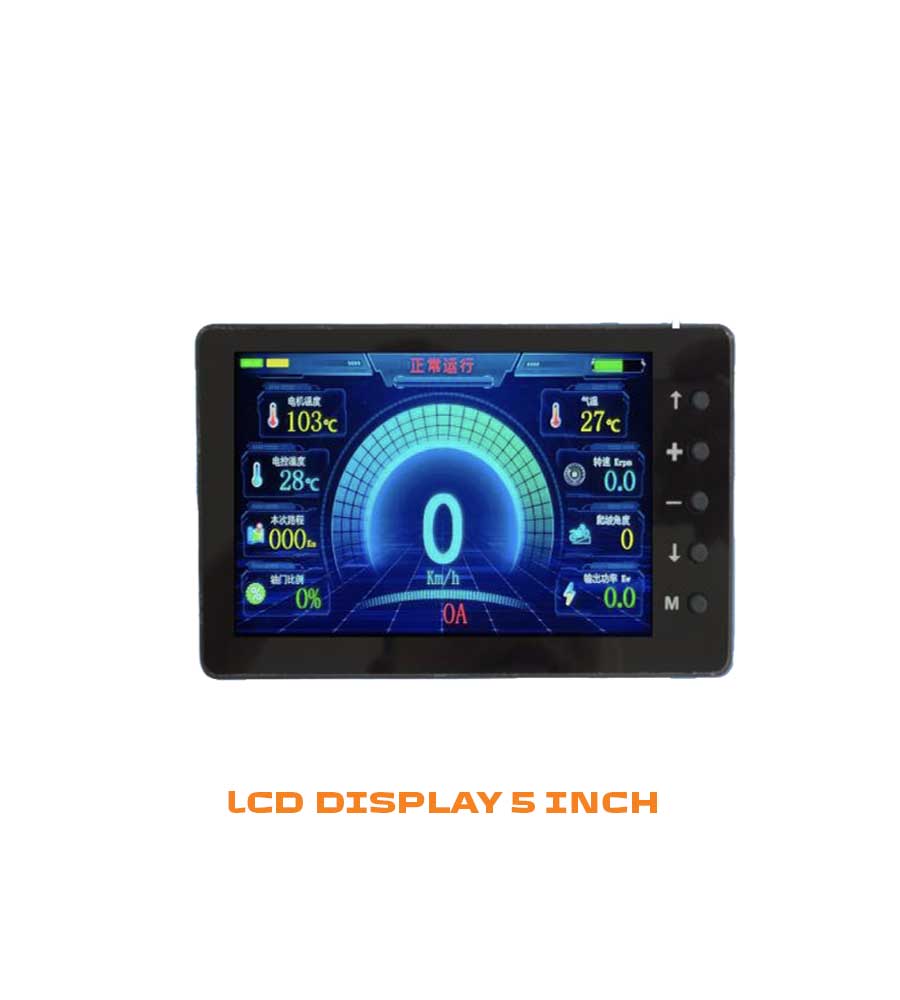

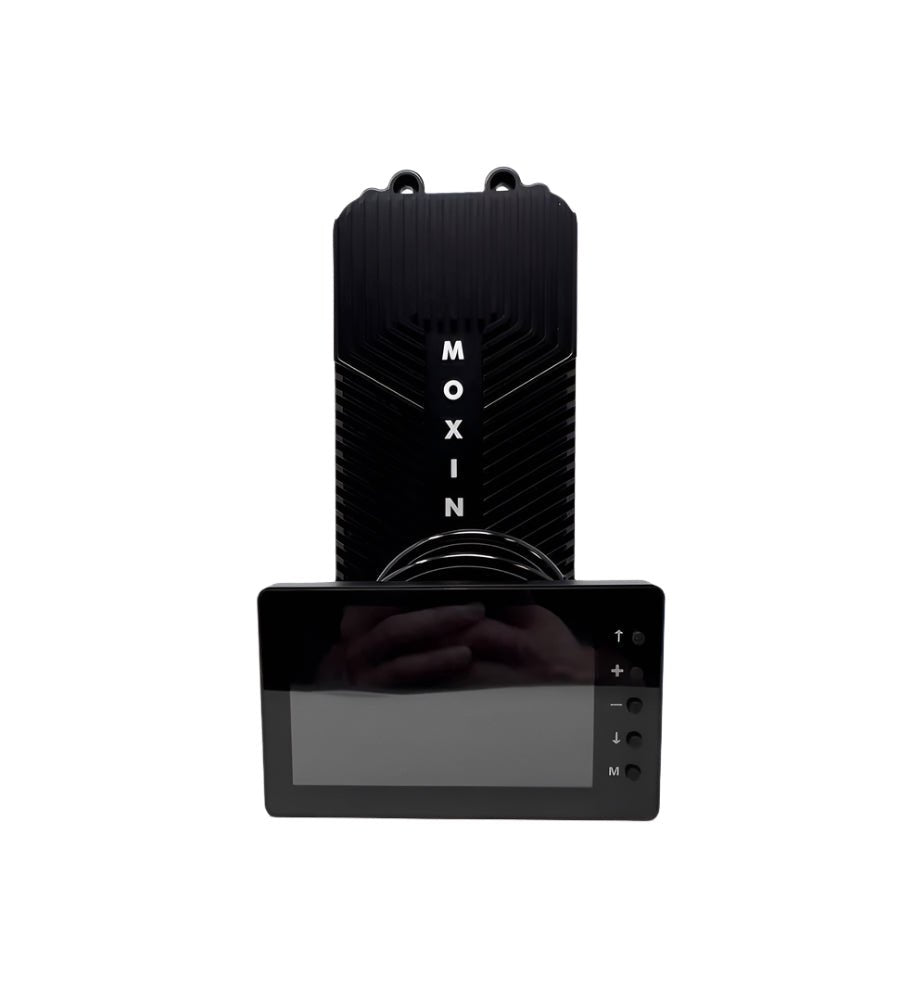

• LCD display (3″, 5″, or 7″) + mounting bracket
• Left/right combination switch
• Installation tool kit
• Regen (linear electronic brake)

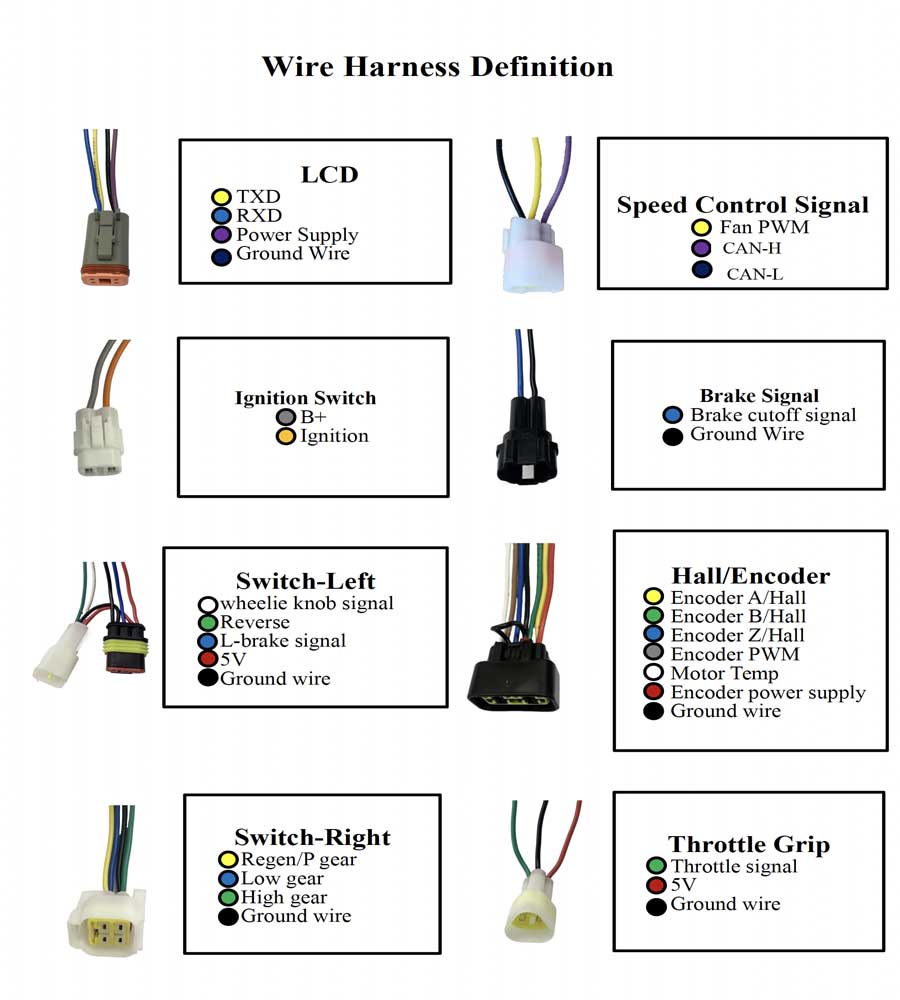

• Encoder-to-Hall adapter harness
• OTA (over-the-air) update module

Technical Specifications

• Rated voltage: 48 V–80 V
• Peak phase current: 1,100 A
• Peak power (10 s): 61.6 kW (80 V × 770 A)
• Max speed:
  • 1-pair: 200,000 RPM
  • 4-pair: 50,000 RPM
  • 16-pair: 12,500 RPM
• Waterproof: IP68 (10 m)
• Continuous bus current: 500 A
• Control response: 1,000 Hz (1 ms)
• Dimensions: 194 × 98 × 58 mm
• Weight: 1.7 kg
• Short-circuit current: ±1,500 A (response time 5 μs)

Motor Compatibility

Compatible with 6-pin Hall motors and 7- or 8-pin encoder motors, including:

1. Stock Light Bee motor (Hall/SPM)*
2. Stock Ultra Bee motor (Encoder/IPM)*
3. Stock Sting 8.0 motor
4. KO encoder motor (Hall)
5. Stock E-Ride motor (Encoder)
6. QS Motor QS165 / QS138 (Encoder)
7. EBMX XLB-60 (Hall)
8. EBMX XUB-80 (Hall)
9. SOTION LTXS motor (Encoder)

We recommend upgrading to a 20–30 kW motor for best performance.

Note: Not compatible with the TORP TM40 Pro motor without modifying the connector to match our wiring.
